Heat Transfer Fluid Systems

Thermal Fluid Systems

The unique convective heat transfer thermal fluid system design of the Uniflux ® heater eliminates the possibility of flame impingement on the process tubes and provides a completely uniform flux density around the periphery of each tube. This uniform heat flux reduces fluid degradation and prolongs the life of the heat transfer fluid. Shop assembled with all controls and instrumentation for automatic, safe and reliable operation for your thermal fluid heater.

Heat Transfer Fluid Systems

Applications

  • Chemical Reactors
  • Resin Kettles
  • Evaporators
  • Textile Heat Setting
  • Dehydrators
  • Drying Ovens
  • Paints
  • Varnishes
  • Dyes
  • Asphalt
  • Extruders
  • Rolls
  • Pilot Plants
  • Offshore
  • Gas Processing



Specifications

  • 0.1 - 70 MMBtu/hr
  • Efficiencies to 95%
  • Process temperatures to 750°F
  • Thermal Fluid Pressures near atmospheric
  • Forced Circulation
  • Gas, Oil, or Dual-Fired Designs
  • Vertical or Horizontal Designs
  • Turndown ratios up to 40:1

Exotherm has a long history of making safe and reliable heat transfer fluid heaters. If necessary, Exotherm can design and provide a pump skid for use with the thermal fluid heater. Pump skids with single pumps, or with one or more installed spares are available.

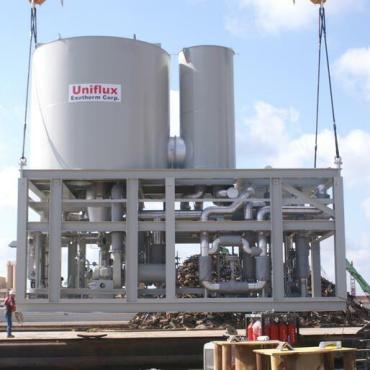

Thermal Fluid Systems Photo Gallery

Click here to submit a Request for Quote or call us today at 1.866.762.9041
